Product Name: Short-arm,Slide On,One Way Concealed Hinge
Item no.: BCH-171
Type: Furniture Hardware > Concealed Hinge
Next Product
Prev Product

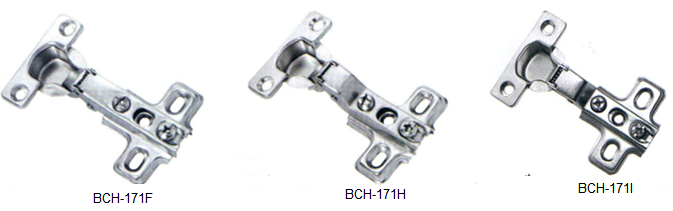

Short-arm,Slide On,One Way Concealed Hinge

Item NO.: BCH-171





Description

Material:                   Cold rolled steel
Finishing:                  Nickel plating
Angle of Opening:       110°
Cup Diameter:            26 mm
Cup Depth:                11.5mm
Hole Pitch:                32mm,38mm


Features:            High quality cold rolled steel body

                         SK-7 carbon steel spring

                         75 pounds load test

                         Over 50,000 cycle test

                         More than 48 hours salt spray test
